Name: 2.54mm Box Header Connector 6 8 10 20 30 40 64 Pin Straight Dip Type DC3
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 4813-136XXSXXX01
Price: 0.01 USD
Availability: InStock

Aperçu Produits Connecteur d'en-tête de boîte

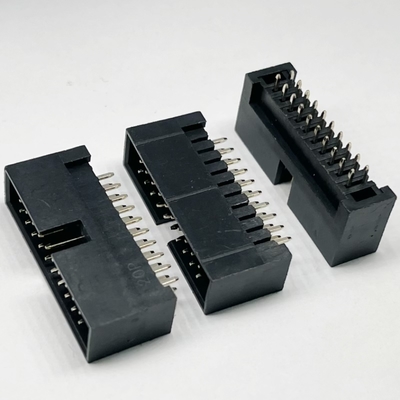

2.54mm Box Header Connector 6 8 10 20 30 40 64 Pin Straight Dip Type DC3

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	HONSHI
Certification:	ROHS/SGS/UL
Numéro de modèle:	4813-136XXSXXX01

Conditions de paiement et expédition:

Quantité de commande min:	100 pièces
Prix:	0.01-0.3 usd
Détails d'emballage:	Plateau/tube
Délai de livraison:	10 à 15 jours
Conditions de paiement:	T / t, paypal
Capacité d'approvisionnement:	100000 pièces

Contact

Description de produit détaillée

Taper:	VACARME	Application:	PCB
Genre:	Mâle	Nom de produit:	Connecteur d'en-tête de boîte
Matériau de contact:	Laiton	Courant nominal:	3Amp
Résistance aux contacts:	20 mΩ	Plaqué:	L'or est émaillé.
Emballage:	Tubes/rouleaux	Échantillon:	Échantillons de support
Cote de tension:	40 V CA	Tension avec:	1000V AC/minute
Pas:	2,54 mm

2.54mm Box Header Connector 20 pin Straight DIP DC3 Headers 2x10p Sample Supported

Product Name	Box Header Connector
Pitch	1.27/1.27X2.54/2.0/2.54mm
Positions	6P-100P
Current Rating	1A/2A/3A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PA6T/PA9T ( UL94V-0 )

Product name: Box Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA6T/PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
